20 Series Butt Inner Link Connector

Description

20 Series Butt Inner Link Connectors are a cost-effective and simple solution for making connections at a 90 degree butt joint. They provide an efficient, affordable, and high-quality method for joining aluminium extrusions, making them ideal for projects that are not load-bearing or require frequent adjustments, such as in the initial design stages. Whether you’re working on a large-scale project or a prototype, these connectors ensure ease of assembly and flexibility in your design.

Key Features

• Cost-Effective: Provides an economical solution without sacrificing quality, making it accessible for all types of projects.
• Easy Assembly: The straightforward design, featuring the Inner Link Connector and grub screws, allows for quick and simple aluminium extrusion assembly.
• Ideal for Prototyping: Perfect for rapid prototyping, these links enable efficient connections, allowing your design to evolve seamlessly.
• Designed for Minimal Load: Tailored for applications with minimal load requirements, offering stability without the bulk of heavy-duty connectors.
• Versatile Compatibility: Compatible with our 20 Series T/V-Slot Aluminium Extrusion, allowing for a wide range of applications and configurations.

Application

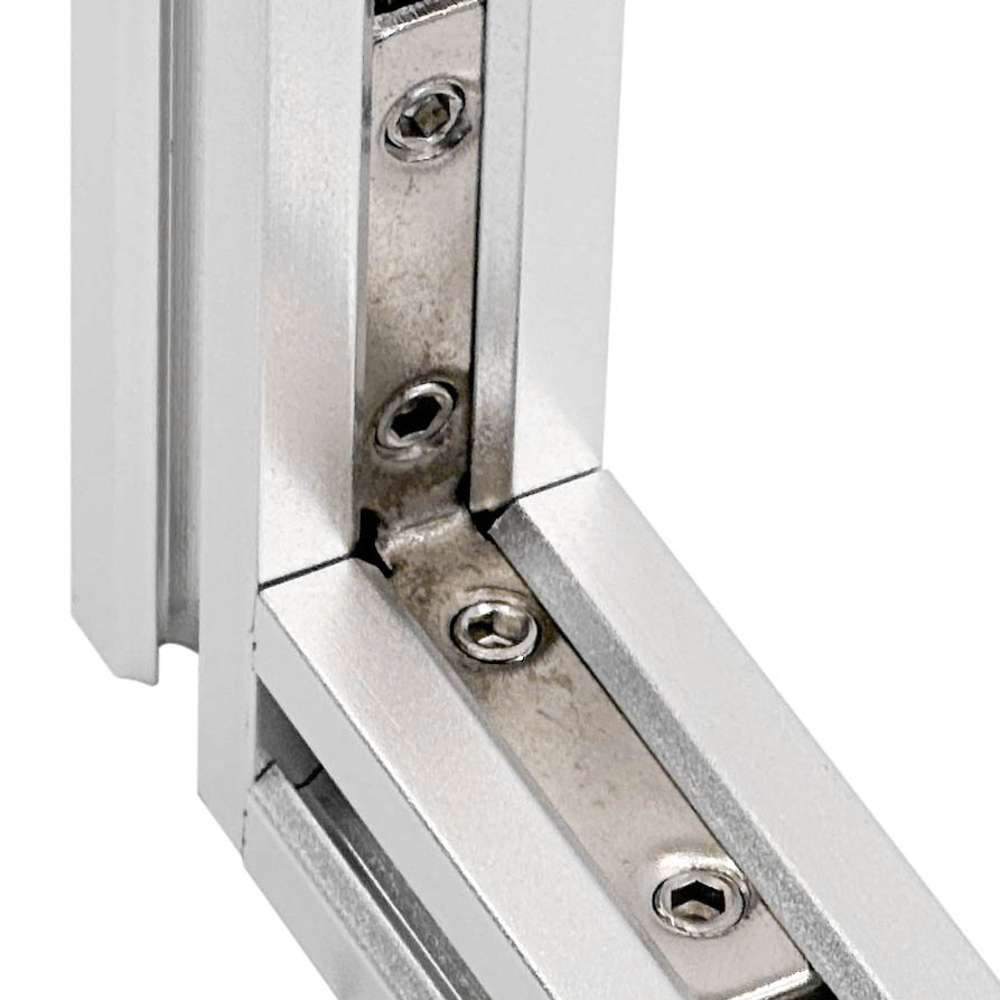

Butt Inner Link Connectors are specifically designed for use with our 20 Series T/V-Slot Aluminium Extrusion. They efficiently connect 20 Series extrusions to form a 90 degree butt joint. For enhanced stability and a more robust connection, it is recommended to increase the number of connectors used, for example use 4 to connect two 20×80 aluminium extrusions.
